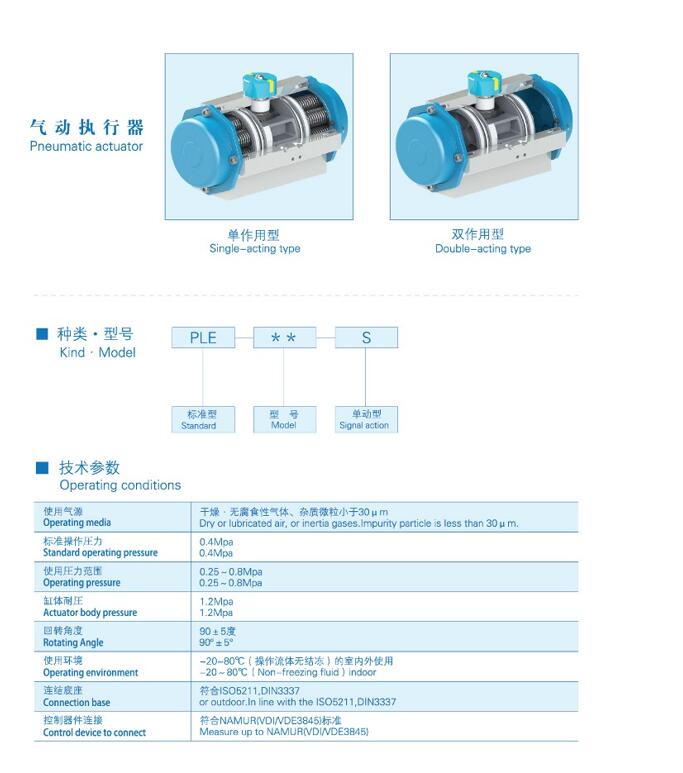

Air Source: Dry, non-corrosive gas, impurity particles less than 30μm

Standard Operating Pressure: 0.4MPa

Operating Pressure Range: 0.250.8MPa

Cylinder Pressure Resistance: 1.2MPa

Rotational Angle: 90±5 degrees

Operating Environment: -20~80℃ (operating fluid should not freeze) for indoor and outdoor use

Mounting Base: Conforms to ISO5211, DIN3337

Controller Connection: Conforms to NAMUR IV DIN DE3845 standard
