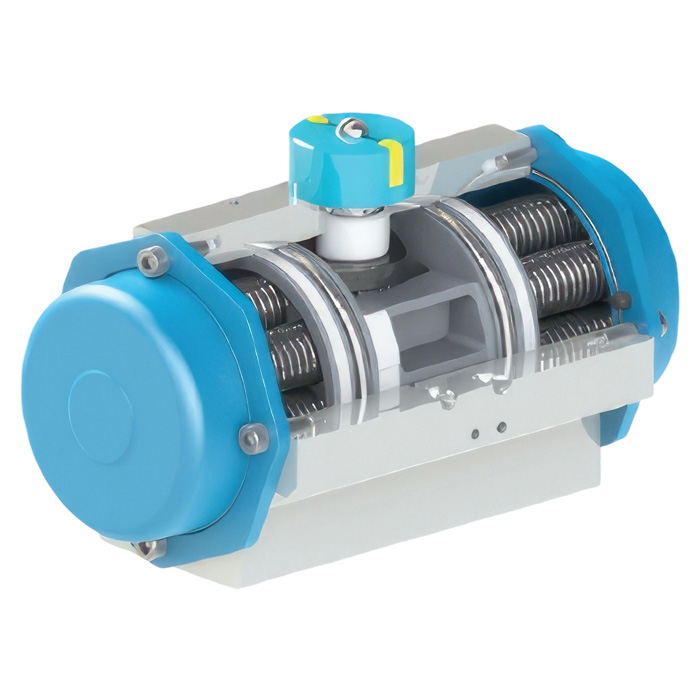

Single-Acting Type
Air Source: Dry, non-corrosive gas, impurity particles less than 30μm
Standard Operating Pressure: 0.4MPa
Operating Pressure Range: 0.250.8MPa
Cylinder Pressure Resistance: 1.2MPa
Rotational Angle: 90±5 degrees
Operating Environment: -20~80℃ (operating fluid should not freeze) for indoor and outdoor use
Mounting Base: Conforms to ISO5211, DIN3337
Controller Connection: Conforms to NAMUR IV DIN DE3845 standard
-

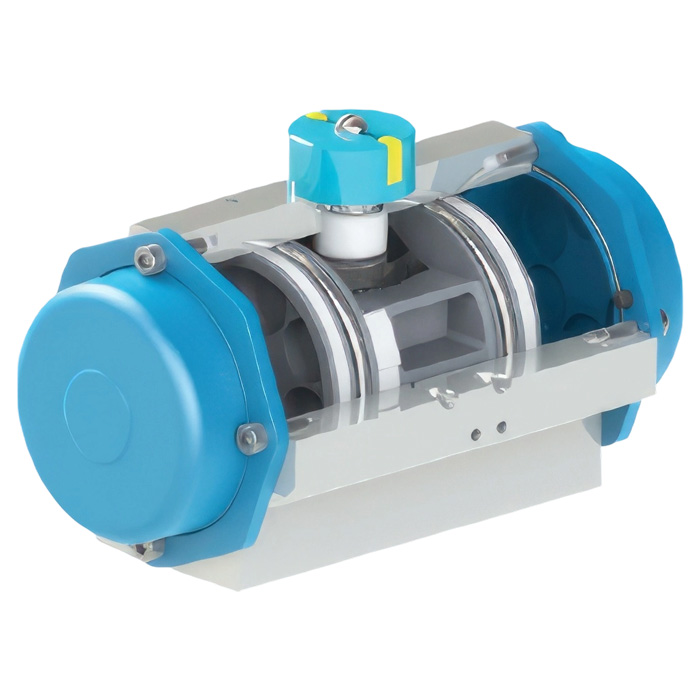

Double-Acting Type
Air Source: Dry, non-corrosive gas, impurity particles less than 30μm
Standard Operating Pressure: 0.4MPa
Operating Pressure Range: 0.25~0.8MPa
Cylinder Pressure Resistance: 1.2MPa
Rotational Angle: 90±5 degrees
Operating Environment: -20~80℃ (operating fluid should not freeze) for indoor and outdoor use
Mounting Base: Conforms to ISO5211, DIN3337
Controller Connection: Conforms to NAMUR IV DIN DE3845 standard
-

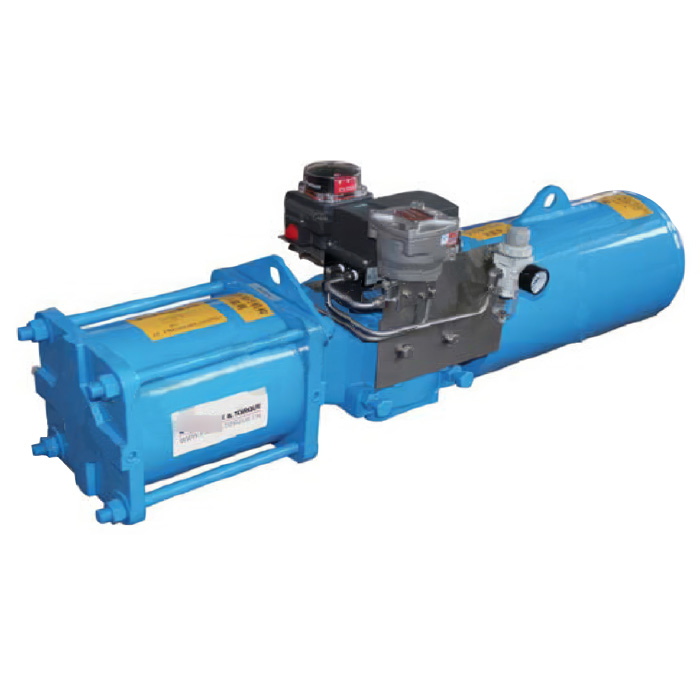

Fork Type Actuator
Air Source: Dry, non-corrosive gas, impurity particles less than 30μm
Standard Operating Pressure: 0.4MPa
Operating Pressure Range: 0.25~0.8MPa
Cylinder Pressure Resistance: 1.2MPa
Rotational Angle: 90±5 degrees
Operating Environment: -20~80℃ (operating fluid should not freeze) for indoor and outdoor use
Mounting Base: Conforms to ISO5211, DIN3337
Controller Connection: Conforms to NAMUR IV DIN DE3845 standard
-
-
